The Workhorse of Material Handling: A Deep Dive into Counterbalance Forklifts

In the bustling world of logistics, manufacturing, and warehousing, efficiency is king. Moving goods quickly and safely is paramount. One machine stands out as the undeniable workhorse in this domain: the counterbalance forklift.

You’ve likely seen them gliding through warehouses or loading trucks. But what exactly makes them tick? How do they differ, and what makes them so essential? This guide delves deep into the world of counterbalance forklifts.

While we at Mr. Moffett specialize in the unparalleled portability and versatility of truck-mounted forklifts, understanding the fundamentals of traditional counterbalance units provides valuable context for all material handling needs. Let’s explore.

What Exactly is a Counterbalance Forklift?

At its core, a counterbalance forklift is a type of industrial lift truck designed to lift and transport materials. Its defining feature is a large weight integrated into the rear of the machine.

This “counterweight” is crucial. It offsets the weight of the load being lifted at the front, preventing the forklift from tipping over. Think of it like a see-saw, perfectly balanced.

They are the most common type of forklift found globally. Their straightforward design and operational principle make them suitable for a vast array of tasks across numerous industries.

The Physics Behind the Balance: How it Works

The magic of a counterbalance forklift lies in basic physics, specifically the principle of leverage. The front wheels of the forklift act as the fulcrum, or pivot point.

The load on the forks exerts a downward force on one side of the fulcrum. The heavy counterweight at the rear exerts an opposing downward force on the other side.

As long as the force exerted by the counterweight (considering its distance from the fulcrum) is greater than the force exerted by the load (and its distance from the fulcrum), the forklift remains stable. This is often visualized as the “stability triangle.”

Understanding load centers is critical here. The further out the load sits on the forks, the less weight the forklift can safely lift. Always refer to the forklift’s data plate for capacity ratings at specific load centers.

Deconstructing the Counterbalance Forklift: Key Components

While seemingly simple, a counterbalance forklift is a complex machine with several critical parts working in unison. Let’s break down the anatomy:

1. The Mast: Reaching New Heights

The mast is the vertical assembly at the front that does the heavy lifting and lowering. It’s arguably the most recognizable feature after the forks.

Masts come in different configurations based on lifting height needs:

• Simplex Mast: A single-stage mast with limited lift height, often called a “standard” mast. The forks and carriage raise together.
• Duplex Mast: A two-stage mast offering greater lift height. It features a primary “free lift” cylinder allowing the forks to rise partially before the inner mast channel extends.
• Triplex Mast: A three-stage mast, very common for warehouse use, providing significant lift height while maintaining a relatively low collapsed height for doorway access. Offers substantial free lift.
• Quad Mast: A four-stage mast designed for extremely high lifting applications.

2. Forks (Tines): The Load Bearers

These are the L-shaped steel arms that slide under pallets or directly under loads to lift them. Standard fork sizes are common, but they vary in length, width, and thickness depending on the application.

Specialized forks exist for unique loads, and attachments can often be fitted over standard forks to handle non-palletized goods like drums or bales. Maintaining fork integrity is crucial for safety.

3. Carriage: Connecting Mast and Forks

The carriage is the platform mounted on the mast to which the forks (and often a load backrest) are attached. It moves up and down the mast channels.

Many carriages include a side-shifter function. This allows the operator to move the forks laterally (left or right) without repositioning the entire forklift, greatly improving efficiency when positioning loads precisely.

4. Power Source: The Heart of the Machine

Counterbalance forklifts are primarily powered in two ways: Electric or Internal Combustion (IC).

• Electric Counterbalance Forklifts:
  • Power: Large industrial batteries (typically lead-acid or increasingly, lithium-ion).
  • Pros: Quiet operation, zero exhaust emissions (ideal for indoor use, food/pharma industries), often lower running and maintenance costs, smooth acceleration.
  • Cons: Higher initial purchase price, require charging time (can necessitate spare batteries for multi-shift operations), battery maintenance (for lead-acid), reduced power on sustained ramps compared to IC.
  • Environment: Best suited for indoor warehouses, distribution centers, and applications where air quality is critical.

• Internal Combustion (IC) Counterbalance Forklifts:
  • Engines: Powered by Liquefied Petroleum Gas (LPG/Propane) or Diesel fuel.
  • LPG (Propane):
    • Pros: More powerful than electric, faster refueling (swapping tanks), suitable for indoor/outdoor use (with proper ventilation indoors), generally lower emissions than diesel.
    • Cons: Fuel tank storage and handling required, engine noise, exhaust fumes (require ventilation), slightly higher maintenance than electric.
    • Environment: Versatile for mixed indoor/outdoor use, common in manufacturing, warehousing.
  • Diesel:
    • Pros: Highest torque and power (ideal for heavy loads, ramps, rougher surfaces), fast refueling, robust performance outdoors.
    • Cons: Noisiest operation, significant exhaust emissions (generally unsuitable for indoor use), higher vibrations, potentially higher maintenance costs.
    • Environment: Primarily outdoor applications like lumber yards, construction sites, shipping ports, heavy manufacturing.

Choosing the right power source depends heavily on the operating environment, required uptime, budget, and specific performance needs.

5. The Counterweight: Essential Stability

This is the large, dense mass integrated into the rear body of the forklift. Usually made of cast iron or steel, its sole purpose is to offset the load being lifted at the front.

The size and weight are precisely calculated based on the forklift’s intended lifting capacity. It’s a non-negotiable component for safe operation.

6. Tires: Connecting to the Ground

Forklift tires significantly impact performance, stability, and where the machine can operate. Two main types are used on counterbalance forklifts:

• Cushion Tires: Made of solid rubber molded directly onto a wheel. They offer a smaller turning radius and are best for smooth, indoor surfaces like concrete warehouse floors. They provide less cushioning for the operator.
• Pneumatic Tires (Solid or Air-Filled):
  • Air Pneumatic: Similar to car tires, filled with air. They provide excellent cushioning and are suitable for uneven surfaces and outdoor applications (asphalt, compacted gravel). Prone to punctures.
  • Solid Pneumatic: Made of solid rubber but designed with the profile of a pneumatic tire. Offer a compromise – better than cushion on uneven surfaces, puncture-proof, but less cushioning than air-filled. Common for outdoor/rough terrain use.

Tire choice directly affects stability, traction, and operator comfort.

7. Overhead Guard: Operator Protection

This is the reinforced cage structure above the operator’s seat. Its primary function is to protect the operator from falling objects. It’s a critical safety feature, especially when lifting loads to height.

Designs vary, but all must meet stringent safety standards to withstand impacts.

8. Operator’s Compartment & Controls: The Command Center

This is where the operator sits or stands (on some models) and controls the forklift. Key elements include:

• Steering Wheel: Controls direction (usually rear-wheel steering for maneuverability).
• Lift/Tilt Levers: Control the raising/lowering of the mast and the forward/backward tilt of the mast/forks.
• Accelerator & Brake Pedals: Control speed.
• Direction Control: Lever or pedal to select forward or reverse.
• Gauges & Indicators: Fuel/battery level, hour meter, warning lights.
• Seat: Designed for operator comfort and safety (often includes a seatbelt).
• Horn & Safety Lights: Essential warning devices.

Ergonomics play an increasing role in modern forklift design to reduce operator fatigue and improve productivity.

Exploring Different Types of Counterbalance Forklifts

Beyond the power source, counterbalance forklifts can be categorized further:

• 3-Wheel Electric: Offer exceptional maneuverability due to a single or dual steer wheel at the rear center. Ideal for tight spaces and narrow aisles, but typically have slightly lower capacity and stability than 4-wheel models.
• 4-Wheel Electric: Provide greater stability, especially when lifting heavier loads or turning at speed. Suitable for a wider range of indoor applications.
• 4-Wheel IC (LPG/Diesel): The standard configuration for internal combustion models, offering robust performance and stability for diverse indoor/outdoor tasks.
• High-Capacity Counterbalance: Specially designed units with significantly larger counterweights and reinforced structures to handle extremely heavy loads (e.g., shipping containers, large machinery components).

Where are Counterbalance Forklifts Used? Common Applications

The versatility of counterbalance forklifts makes them indispensable across many sectors:

• Warehousing & Distribution Centers: The classic environment. Used for loading/unloading trucks, moving pallets to/from racking, order picking (at ground level), and general material transfer.
• Manufacturing Facilities: Moving raw materials to production lines, transporting finished goods to storage or shipping areas, handling work-in-progress.
• Retail Operations: Primarily in backroom storage areas and receiving docks for unloading supplier deliveries and stocking shelves (often smaller electric models).
• Shipping Yards & Ports: Loading and unloading containers (using larger capacity models), moving cargo around the yard.
• Construction Sites: Handling building materials like bricks, blocks, and lumber (though rough terrain capability can be limited – an area where Moffett truck-mounted forklifts often excel due to their portability and site accessibility).
• Recycling Centers: Moving bales of recyclable materials, loading processing equipment.
• Lumber Yards: Handling stacks of timber and other building supplies.

Advantages: Why Choose a Counterbalance Forklift?

These machines remain popular for good reasons:

• Versatility: Capable of performing a wide range of lifting and transporting tasks.
• Direct Loading/Unloading: Forks reach directly into racking or onto truck beds without needing reach mechanisms.
• Simplicity: Relatively straightforward operation compared to more specialized equipment like VNA (Very Narrow Aisle) trucks.
• Wide Range of Capacities: Available in models handling loads from under a ton to over 50 tons.
• Indoor/Outdoor Flexibility: IC models, particularly LPG, can often work both inside (with ventilation) and outside. Electric models dominate indoors.
• Availability & Cost: Standard models are widely available for purchase or hire, with competitive pricing.

Limitations and Considerations

Despite their strengths, counterbalance forklifts aren’t perfect for every situation:

• Turning Radius: Generally require more space to maneuver than reach trucks or 3-wheel electrics.
• Aisle Width: Not ideal for very narrow aisle warehouse configurations.
• Ground Clearance: Cushion-tired models require smooth, level surfaces. Pneumatic tires offer more flexibility but still have limitations compared to dedicated rough terrain machines.
• Portability: They are site-based machines. They cannot transport themselves between locations like a Moffett, which mounts directly onto a truck or trailer.
• Site Accessibility: Delivering goods to a site without a loading dock or onsite forklift? A counterbalance won’t help. This is a prime scenario for a truck-mounted forklift.

Safety First: Operating Counterbalance Forklifts Responsibly

Operating any heavy machinery requires diligence and adherence to safety protocols. Forklifts are powerful tools that can cause serious accidents if misused.

• Operator Training & Certification: Mandatory in most jurisdictions. Untrained individuals should NEVER operate a forklift. Proper training covers stability, load handling, maneuvering, and emergency procedures.
• Pre-Operation Checks: Daily inspections are crucial. Check brakes, steering, mast operation, forks, tires, fluid levels, lights, horn, and safety guards before starting work. Report any issues immediately.
• Load Handling:
  • Never exceed the rated capacity shown on the data plate.
  • Understand the load center – keep loads close to the mast.
  • Ensure loads are stable and secure on the pallet/forks.
  • Tilt the mast back slightly when traveling with a load.

• Traveling Safely:
  • Maintain safe speeds appropriate for conditions.
  • Look in the direction of travel; use mirrors and spotters if visibility is obstructed.
  • Slow down and sound the horn at intersections and blind corners.
  • Keep forks low (4-6 inches off the ground) when traveling unloaded or loaded.
  • Travel in reverse down ramps with a load (load facing uphill).
  • Watch out for pedestrians and maintain a safe distance.

• Parking Procedures: Park in designated areas, lower forks fully, apply the parking brake, turn off the power, and remove the key. Never park on an incline or obstruct exits/emergency equipment.
• Refueling/Recharging: Follow specific safety procedures for handling LPG tanks or charging batteries (proper ventilation, no smoking, correct connections).
• Personal Protective Equipment (PPE): Operators should wear appropriate PPE, such as safety shoes and high-visibility clothing.

Commitment to safety is non-negotiable. Regular maintenance and prompt forklift servicing are also key parts of a safe operation.

Maintaining Your Counterbalance Forklift

Like any vehicle, regular maintenance is vital for longevity, performance, and safety.

• Daily Checks: As mentioned in safety, these visual and functional checks catch minor issues before they become major problems.
• Periodic Servicing: Follow the manufacturer’s recommended service intervals (based on operating hours or time). This involves deeper inspections, lubrication, fluid changes (oil, hydraulic fluid, coolant for IC models), filter replacements, and adjustments.
• Key Areas: Pay close attention to tires (wear, damage, pressure), forks (cracks, bending), lift chains (wear, lubrication), brakes (performance), hydraulic systems (leaks, hose condition), and safety devices.
• Professional Service: While daily checks can be done by operators, periodic maintenance should be performed by qualified technicians. They have the tools, knowledge, and access to genuine parts to keep the machine in top condition.

Neglecting maintenance leads to breakdowns, costly repairs, and significantly increased safety risks.

Choosing the Right Counterbalance Forklift for Your Needs

Selecting the appropriate forklift involves considering several factors:

• Load Capacity: What is the maximum weight you need to lift regularly?
• Lift Height: How high do you need to stack pallets or reach shelves?
• Environment: Indoor, outdoor, or mixed? Smooth floors or uneven terrain? Temperature considerations?
• Fuel/Power Preference: Emission concerns (electric)? Need for continuous operation (IC)? Budget for fuel/electricity?
• Aisle Widths: How much space do you have for maneuvering?
• Operating Hours: Single shift or multi-shift operations? (Impacts battery charging needs).
• Budget: Initial purchase/hire cost vs. long-term operating costs.
• Attachments: Do you need specific attachments (clamps, rotators, etc.)?

Carefully evaluating these points will guide you to the most suitable type (3-wheel/4-wheel, electric/IC, tire type) and model. Consulting with material handling experts can provide invaluable guidance.

Counterbalance Forklifts vs. Truck-Mounted Forklifts (Moffetts)

While both are forklifts, their applications differ significantly. It’s crucial to understand when each excels.

• Counterbalance Forklift:
  • Best For: Fixed locations (warehouses, factories, yards) with existing loading docks or level ground.
  • Strengths: High capacity ranges, efficient for repetitive tasks within a confined area, lower initial cost for standard models.
  • Weaknesses: Not portable, requires transport to move between sites, limited rough terrain capability (standard models), needs unloading infrastructure at delivery points.

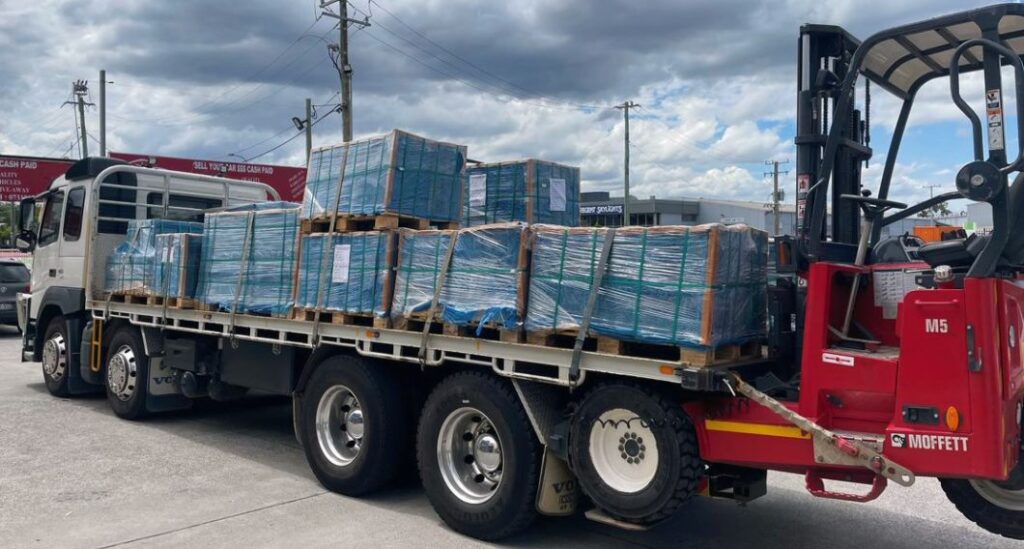

• Truck-Mounted Forklift (e.g., Moffett):
  • Best For: Mobile operations, deliveries to sites without unloading facilities, multi-drop routes, navigating varied or uneven terrain at delivery points.
  • Strengths: Extreme portability (mounts on truck/trailer), rapid deployment at site, eliminates manual handling, increases delivery independence and speed, excellent maneuverability, often better on varied ground surfaces. Explore the Mr. Moffett range for specific models.
  • Weaknesses: Generally lower lifting capacity than large counterbalance models, adds weight to the host vehicle.

The Choice: If your work is primarily within your own facility with good surfaces, a counterbalance is often the standard. If you deliver goods or need lifting capability at various locations, especially those without their own equipment, a truck-mounted forklift like a Moffett is the superior solution.

Conclusion: The Indispensable Counterbalance

The counterbalance forklift, in its various forms, remains a cornerstone of modern material handling. Its blend of power, versatility, and relative simplicity has cemented its place in warehouses, factories, and yards worldwide.

Understanding its mechanics, types, applications, and safety requirements is essential for any business involved in moving goods. From the compact 3-wheel electric navigating tight aisles to the brawny diesel units handling heavy outdoor loads, there’s a counterbalance forklift designed for almost any fixed-site task.

However, when your lifting needs extend beyond your own four walls – requiring portability and delivery site flexibility – the unique advantages of truck-mounted forklifts come to the fore.

For expert advice on truck-mounted forklift solutions, including sales, hire, servicing, and parts, don’t hesitate to contact Mr. Moffett. We live and breathe mobile material handling.
